Capacitive power factor correction for 1-35kV/50(60)Hz system.
HVCS-10-2400/400
Indoor/ Outdoor
Sanhe
| PDF Export | |

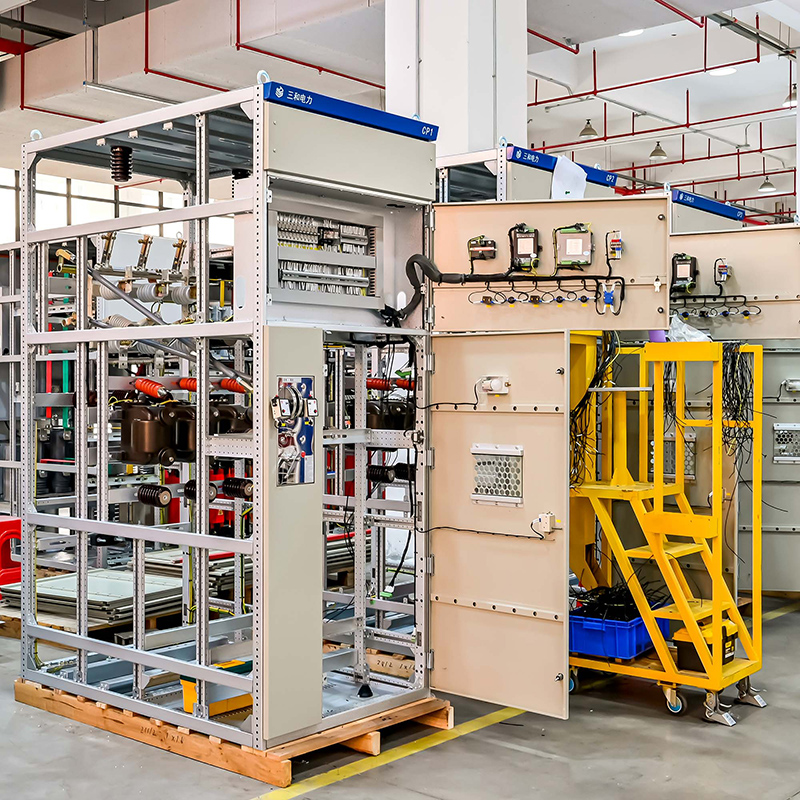

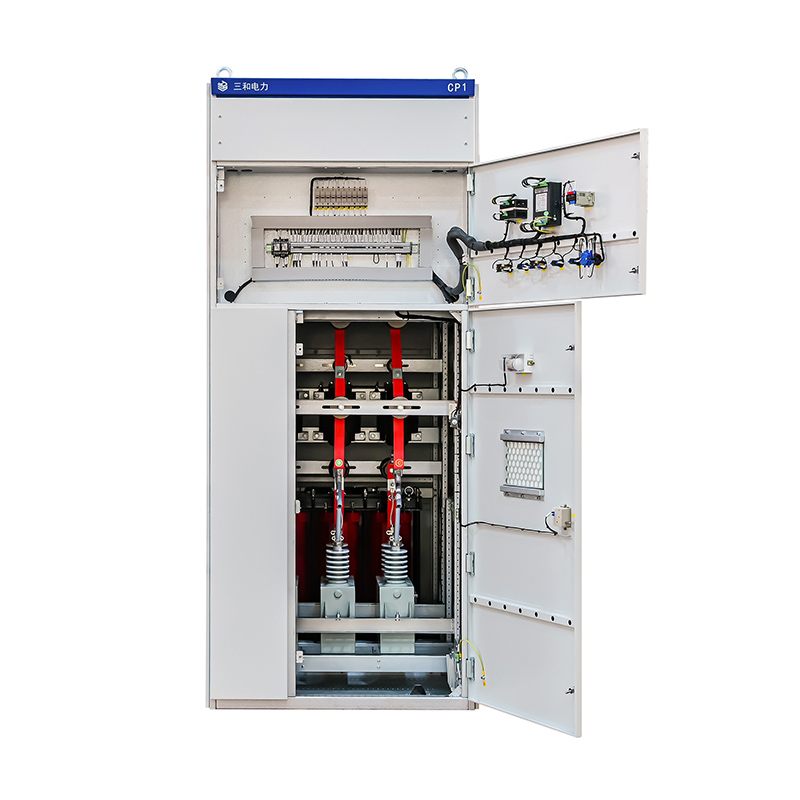

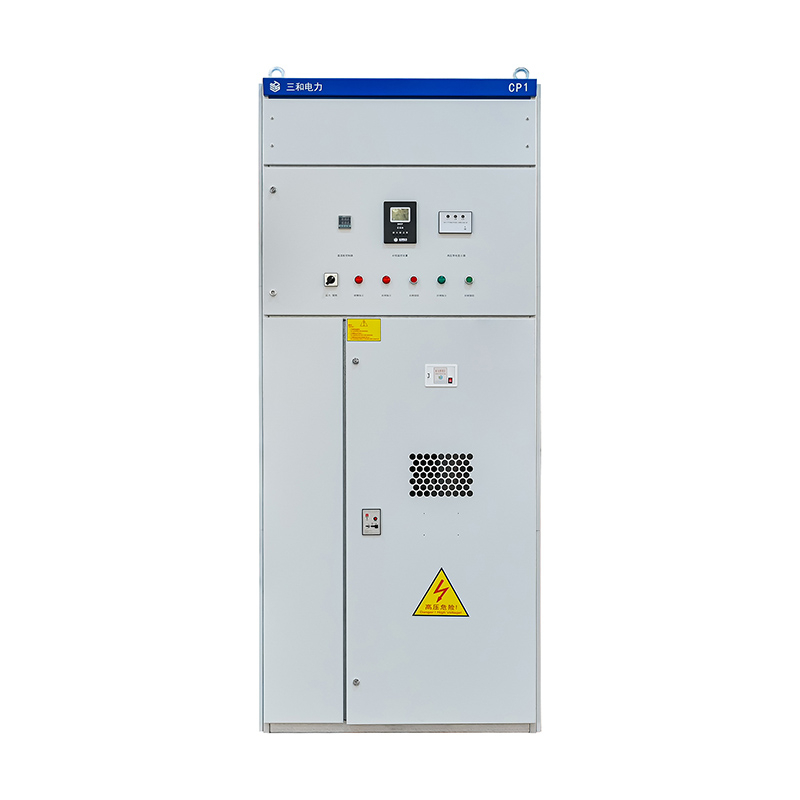

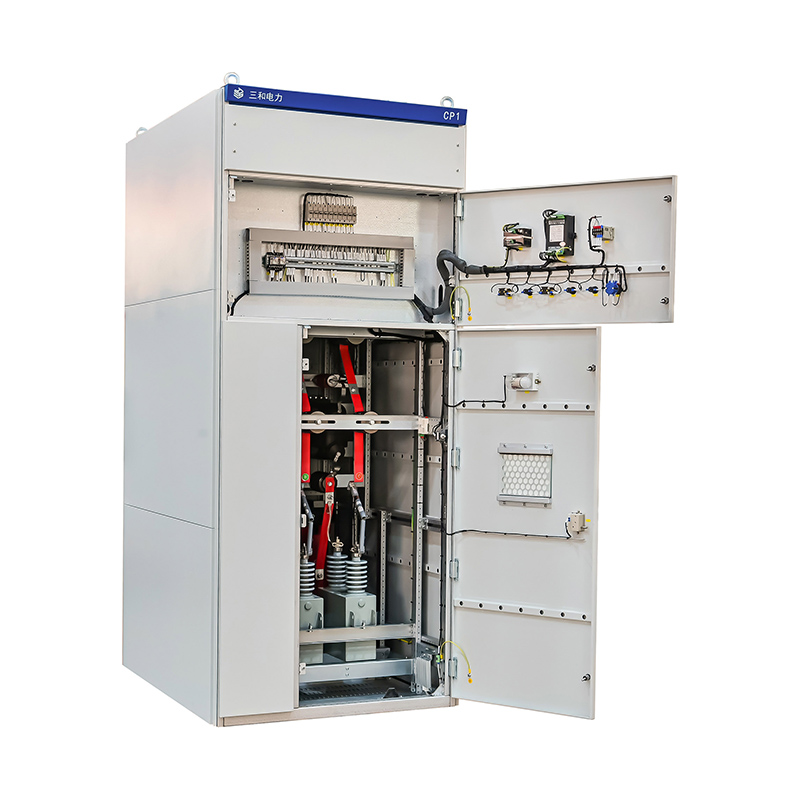

HVCS series of high voltage centralization power factor improvement equipment is installed in the 6-35kV busbar of total voltage reduction substation of the company or place, its main functions include compensating for reactive power, enhancing power factor, regulating power network voltage, reducing power consumption by cable, improving the quality of power supply and enhancing the efficiency of power distribution device. It is popularly used in the fields of metallurgy, mining, building material, oil, chemical industry, public utility project etc.
Feature
High pressure ejecting or current-limiting fuse are adopted as internal problem or short circuit protection for single capacitor to ensure the safe operation of the devices.
High tech and film capacitor (the residual voltage decreases to less than 50V while power-off)
Equipped with high voltage display device, magnetic lock and watch window.
Force locking function to keep the operator safe.
Equipped suitable reactor to suppress high times harmonic or closing inrush current.
Perfect protective measures including, over-current, transient break, over-voltage, low voltage and so on
Standards
IEC 60871-1：2014
GB/T 11024.1-2019
GB 50227-2017
GB/T 30841-2014
DL/T 604-2009
Q/RCSW 002-2005

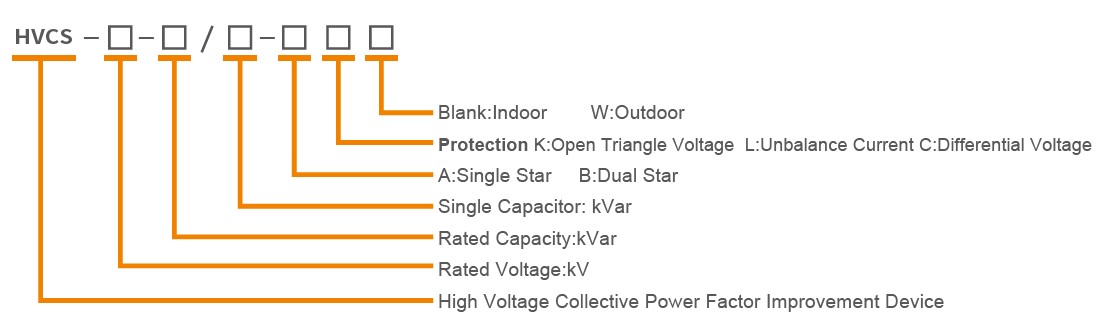

Model Guide

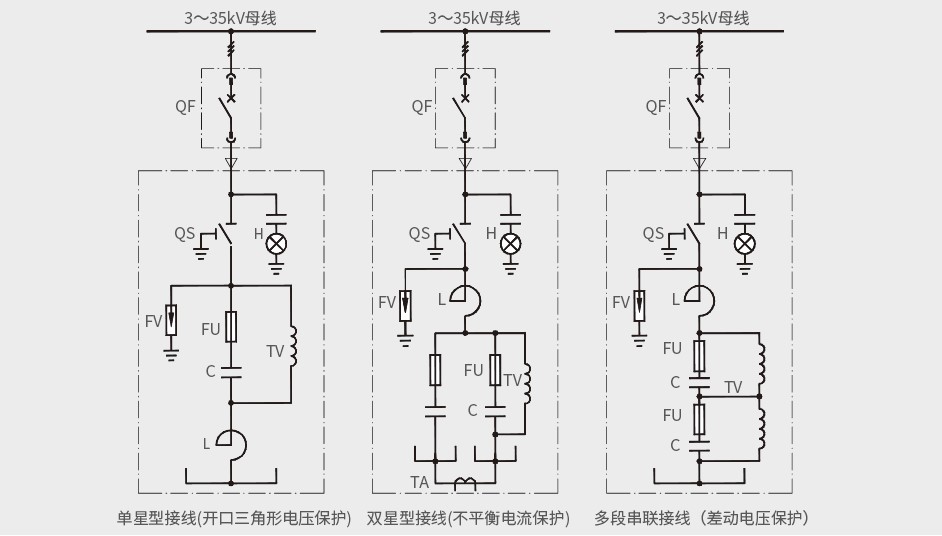

Primary Diagram
Model Selection Guide
Please specify the rated voltage, the equipment rated capacity and the single capacitor capacity.What is your special requirement?
HVCS centralization compensation equipment is almost cabinet type, which can be fixed around the capacitor room, power distribution room. We can also make rack type if you need.
The solution of equipment capacity should consider system load fluctuation and avoid overcompensation.
If the capacitor rated voltage is higher than bus bar voltage or equipped with series reactors, we should calculate output capacity and raged capacity.
The configuration and size can be customized per customer’s requirement.
Example
The system rated voltage: 10Kv
Demand:2110kvar compensation capacity
Require：6% reactor which can detune 5 times or above harmonic and limit inrush current.
Our solution: HVCS-10-2400/400 reactive power centralization compensation equipment. Its rated capacity: 2400kvar, its single capacitor is 400kvar,equipped with inner fuse protection.
the output capacity is 2110kvar while bus bar voltage is 10Kv. It is two cabinets combined ,total size 2400x1600x2600mm.
